Expanded Metal Sheet Making Machinery
The Machines are designed for production of expanded metal sheets and rolls with the thickness of 0.5mm - 8.0mm and the maximum width of 2000mm. Metal plates processed include Stainless Steel, Carbon Steel, Aluminum, Nickel, Titanium as well as other materials. The shearing force of the expander is related to the thickness of the materials as well as the LWD. Considering the same thickness of the raw materials, the shearing force will increase with the decreased LWD.
The expanded metal production line covers machinery for sheet metal expanding, pressing and flattening, shearing and slitting.
Finished expanded meshes are used in construction, architecture , common hardware, fencing, window and door security, machine protecting, etc. Expanded metals are processed into corner beads, metal lathing, coils, decorative sheet for facade or wall cladding in various architectural designs, fences.
Models and Parameters
| Model | Material thickness | Material max. width | Mesh size of LW | Distance of feed | Stroke per min times / min |
Motor | Net weight | Overal dimensions |
| SQ25 - 6.3, Light type |
Max 1.0 mm | 500 mm | Max 20 mm | 0 - 1.5 mm | 190 | 2.2KW | 1.0T | 1090 x 710 x 1450 mm |
| SQ25 - 6.3B, Light type | Max 0.5 mm | 500 mm | Max 20 mm | 0 - 1.6 mm | 200 - 400 | 2.2KW | 0.86T | 1050 x 710 x 1450 mm |
| SQ25 - 16 | Max 1.0 mm | 1000 mm | Max 25 mm | 0 - 1.2 mm | 150 | 3.0kw | 2.0T | 1800 x 1320 x 1550 mm |
| SQ - 25 - 16A | Max 1.0 mm | 1000 mm | Max 25 mm | 0 - 1.2 mm | 300 | 5.5kw | 2.05T | 1470 x 850 x 1630 mm |
| SQ25 - 25 | Max 1.5 mm | 1250 mm | Max 30 mm | 0 - 1.2 mm | 150 | 4kw | 3.0T | 1940 x 1600 x 2010 MM |
| SQ25 - 40 | Max 2.0 mm | 1500 mm | Max 80 mm | 0 - 3.2 mm | 120 | 11kw | 6.0T | 2870 * 990 * 2140 |
| SQ25 - 63 | Max 3.0 mm | 2000 mm | Max 150 mm | 0 - 4 mm | 45 | 15kw | 10T | 3600 x 2500 x 3000 |
| SQ25 - 100, Heavy type | Max 6.0 mm | 2000 mm | Max 200 mm | 0 - 4 mm | 60 | 22kw | 12T | 3600 x 2500 x 3000 mm |
| SQ25 - 160, Heavy type | Max 8.0 mm | 2000 mm | Max 200 mm | 0 - 7 mm | 45 | 30KW | 22T | 3280 * 3620 * 2850 |
Photos:

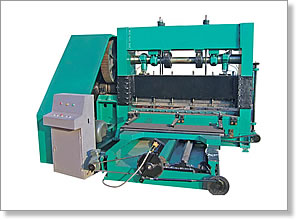

Model SQ25-6.3 Light Machine
designed to produce Fine Mesh Applied for Electronics and battery net. Working metal material Max 1.0mm, 500mm, Max mesh length 20mm

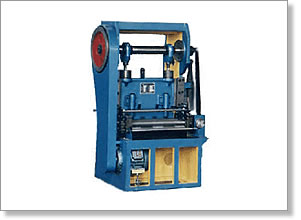

Model SQ25-16 Light Type Metal Expanding Machine
Designed to produce metal sheet with Max 1.0mm, 1000mm, Max mesh length 25mm

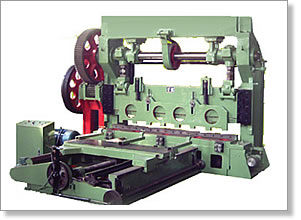

Model SQ25-25 Machine
Stretching metal sheets into Diamond Mesh. Processing metal Plate with Thickness Max 1.5mm, length 1250mm, mesh opening Max 30mm

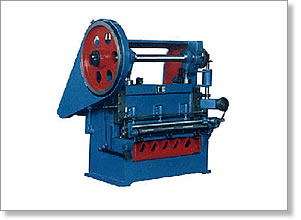

Model SQ25-63 Machine
Designed for producing of aluminum and other metal Nets, material Max width 3.0mm, 2000mm length, mesh Max 150mm

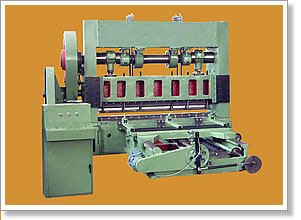

Model SQ25-100 Machine
Designed for processing of material Max thickness 6.0mm, Width 2000mm, mesh max. 200mm

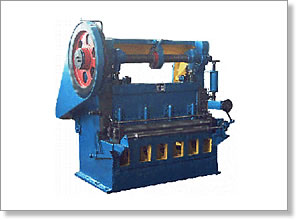

Model SQ25-40 Machine
Designed to process metal plate with sheet width Max 2.0mm, length 1500mm, mesh Max length 80mm

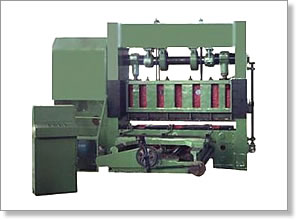

Model SQ25-160 Heavy Expanded Metal Machine
designed to process metal material Max 8.0mm, 2000mm, mesh Max 200mm. The heavy type panels produced with this machine is mainly for flooring and decking uses.

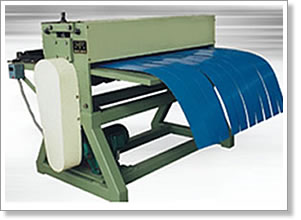

Expanded Metal auxiliary Machine
designed to flatten metal meshes.
