Decorative Metallic Expanded Mesh

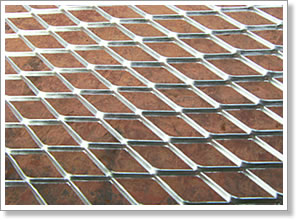

Expanded Metals are decorative and light weight mesh sheets made from a wide range of materials. We mainly supply expanded meshes stretching from carbon steel, aluminum, also stainless steel, nickel and other metals. The stretched mesh sheets and mesh rolls are popularly used in architectural interior and exterior decoration and industrial flooring constructions. Typical finished products include architecture facade cladding mesh and curtains, wall cladding panels, shading screen, ventilation grille, platform decking and metal grates as well as other industrial uses. Sheet thickness available from 0.5mm to 8mm.
Heavy Type and Light Type Expanded Meshes
Materials: Aluminum, carbon steel, stainless steel.
Hole shapes: Diamond, hexagonal, fish scale shape, etc.
Surface treatment: PVC coated, galvanized, powder coated, anodized aluminum.
Colors: Green, black, red, yellow, etc.
SWD: 36 mm – 76 mm.
LWD: 50 mm – 200 mm.
Thickness: 3 mm – 8 mm.
Forms: Metal sheet, flat or raised

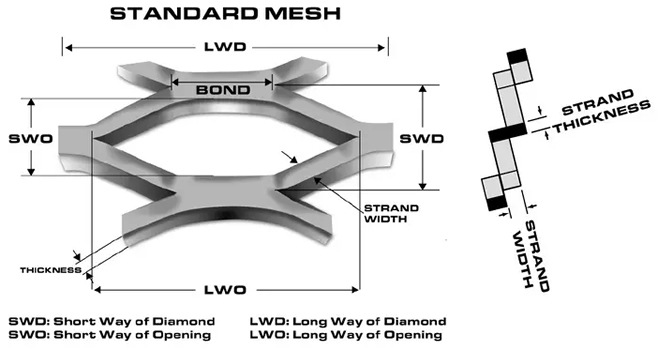

LWD - long way of diamond hole
Bond - where two stands intersects
Strand width-length of the metal used to
produce one strand
Sheet / strand thickness- guage thickness
LWM( width )- mesh sheet size, the distance of LWD direction
SWM-( length) - mesh sheet size, the distance of SWD direction.
Expanded Metal Ceiling Panels
Material: SS304, SS316L, Aluminum, Carbon Steel
Hole Shape: Diamond, Hexagon
Size for mesh panel:1000*2000mm, 1200*2400mm, 1250mm*2500mm, as customized
Thickness:0.3mm-10mm
Hole Size:SWD： 5.0-60mm LWD: 10-150mm
Fabrication:Expanding
Application: Architectural ceiling, building space partition, site protection, indoor decoration.

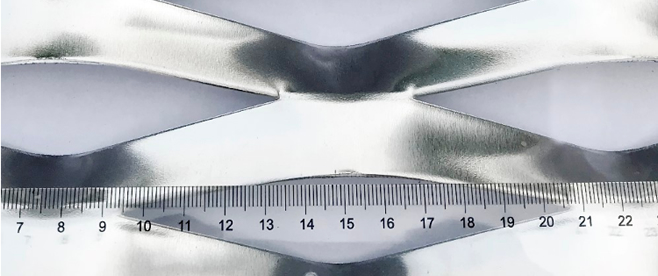

Decorative Diamond ( Rhombus Opening) Ceiling Mesh Panels & Wall Panels Made of Anodized Aluminum
Exterior Decoration Mesh Sheets

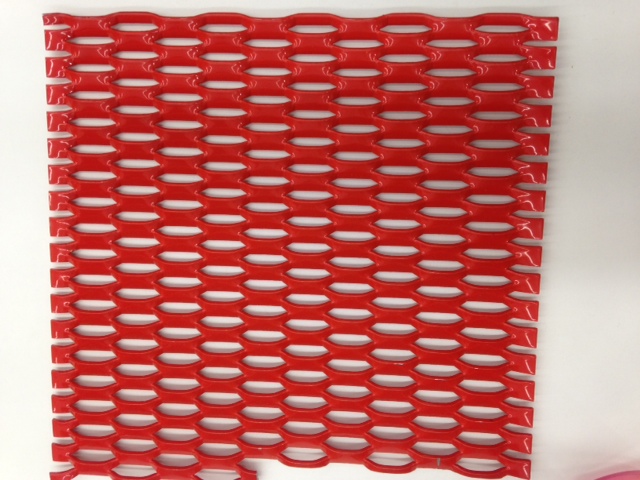

Expanded aluminium metal mesh in 2 mm thickness for building facade cladding curtain, with red color powder coating
Materials: Aluminium plate, low carbon steel plate, stainless steel plate, Al-Mg alloy plate.
Types of holes: Diamond
Type of Sizes:
LWD: 12.5-200mm
SWD: 5-80mm
Thickness: 0.3-8mm.
Forms: Sheets or mesh rolls.
Packing: Waterproof paper packing and woven bags or cartons.
Application: Road fencing, machine guarding, architectural decoration.
Specification List of Steel Expanded Mesh |
|||||||
Plate Thickness(mm) |
Hole Width / SWD(mm) |
Hole Length |
Stems Width |
Width(mm) |
Length(mm) |
weight(kg/m2) |
|
0.5 |
2.5 |
4.5 |
0.5 |
0.5 |
1 |
1.8 |
|
0.5 |
10 |
25 |
0.5 |
0.6 |
2 |
0.73 |
|
0.6 |
10 |
25 |
1 |
0.6 |
2 |
1 |
|
0.8 |
10 |
25 |
1 |
0.6 |
2 |
1.25 |
|
1 |
10 |
25 |
1.1 |
0.6 |
2 |
1.77 |
|
1 |
15 |
40 |
1.5 |
2 |
4 |
1.85 |
|
1.2 |
10 |
25 |
1.1 |
2 |
4 |
2.21 |
|
1.2 |
15 |
40 |
1.5 |
2 |
4 |
2.3 |
|
1.5 |
15 |
40 |
1.5 |
1.8 |
4 |
2.77 |
|
1.5 |
23 |
60 |
2.6 |
2 |
3.6 |
2.77 |
|
2 |
18 |
50 |
2.1 |
2 |
4 |
3.69 |
|
2 |
22 |
60 |
2.6 |
2 |
4 |
3.69 |
|
3 |
40 |
80 |
3.8 |
2 |
4 |
5.00 |
|
4 |
50 |
100 |
4 |
2 |
2 |
11.15 |
|
4.5 |
50 |
100 |
5 |
2 |
2.7 |
11.15 |
|
5 |
50 |
100 |
5 |
1.4 |
2.6 |
12.39 |
|
6 |
50 |
100 |
6 |
2 |
2.5 |
17.35 |
|
8 |
50 |
100 |
8 |
2 |
2.1 |
28.26 |
|
