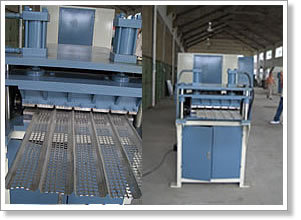

Machine for Production of Rib Lath and Hi Ribbed Lathing
The machines are designed to produce hy-ribbed and ribbed lathing:
Sheet material processing: galvanized plate or stainless.
MAIN PARAMETER:
1: INSTALLING SIZE: 15000mm x 1100mm x 1700mm
2: TOTAL NET WEIGHT: 4850kg
3: CONTROLLER: BY RELAY
4: TOTAL: 13.2 kw POWER OF EXPANDER: 5.5 kw
GROOVE MAKING POWER: 5.5 kw HYDRAULIC CUTTING SYSTEM: 2.2 kw
5: SPEED: 0-2000 mm/min
Inner diameter:350mm,
Outer diameter:700mm,
Material width : 200--600MM,
Motor power: 4Kw,
Loading weight:<5000kg,
Motor power:5.5KW,
Piston pump:28Mpa,
Working table:1200 mm X1200 mm,
Speed : about 400 times/min
Cutter material:Cr12mov,
Device Size: 1500*1100*1200mm,
Main Machine:
Pressure: 300 KN
Material thickness: 0.4 mm
Mesh width: ≤700 mm
Punching speed: Max. 300 strokes/min, or 6m/min
Slide stroke:20 mm
Max. Die height: 200 mm
Die height adjustment MAX. 50 mm
Motor Power: 7.5 KW
Auxiliary machinery:
Hydraulic power: 4kw
Working pressure: 10-12Mpa adjustable
Solenoid valve: 2 groups
Hydraulic oil: 46# hydraulic oil
Size: 550*550*550mm
Weight: 0.35T
HY-rib formwork machine production line
Rib Lath Sheet Making Machine
